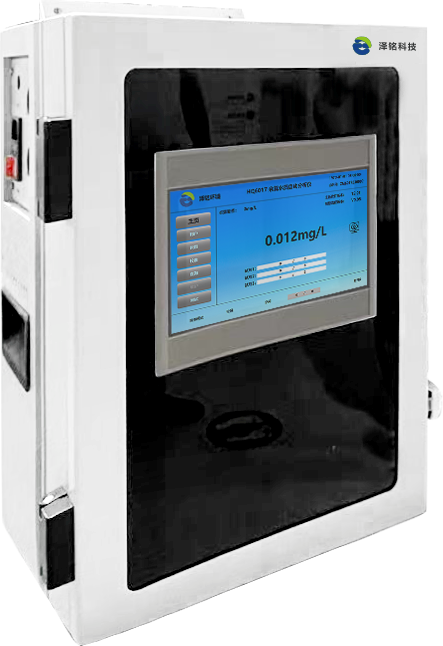

The HQ-6000 series microfluidic analysis platform is based on continuous flow analysis technology. Each  reaction volume is as low as 0.4ml and reagent measurement unit is as low as 0.03ml. The platform has  high analysis accuracy and repeatability of up to 0.1%; Strong range compatibility, with optional optical  path analysis of 2,5,10,20,30,40mm, meeting the different requirements of monitoring indicators for range  and resolution; The analysis parameters include residual (total) chlorine, residual chlorine dioxide, residual ozone, ammonia nitrogen, nitrite nitrogen, phosphate, silicate, fluoride, etc.

Product Features：

1. Micro flow technology, with each reaction total volume less than 1mL and reagent consumption of 0.03mL

2. The national standard DPD method is compatible with residual  chlorine/total chlorine/residual chlorine dioxide/residual ozone  indicators, and the range can be expanded;

3. The instrument is quickly connected without the need to install a  pressure relief device;

4. Versatile Measurement Modes: Displays remaining reagent, with self-diagnosis and alarm functionality.

5. Flexible Configurations: Offers single, continuous, periodic, and fixed-point measurement modes.

6. Ergonomic Design: Modular design for ease of operation, maintenance, and integration.

7. Support RS485 communication port, (4-20) mA analog output;

8. Low power consumption, low reagent  waste, and short testing cycle

9. Active water intake without the need for  external pressure relief devices, easy  installation, installation area only need  the size of the cabinet (0.3 square  meters), automatic cleaning, no need for  manual cleaning

Application Scenarios:

·Municipal water plants, secondary water supply, and terminal water quality monitoring.

·Monitoring of hypochlorous acid disinfection in swimming pools (water treatment processes, disinfection stages, hospital wastewater, water supply networks, swimming pools).

·Monitoring of water quality disinfection in circulating cooling water, medical wastewater, and other scenarios.

·Applicable in industries such as food production, brewing, pharmaceuticals, steel, petroleum, electroplating, and textile dyeing.

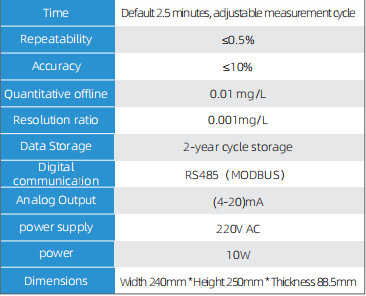

Technical Attributes
