快速、低成本的掌握排水管道、明渠、检查井、排口的连续运行特征
Quickly and low-cost grasp the continuous operation characteristics of drainage pipelines, open channels, inspection wells, and outlets
产品介绍
智慧窨井监测系统是采用包括多光谱技术、光学传感器技术、离子选择性传感器技术，运用现代传感器技术、自动控制技术、专用数据分析软件和无线通讯网络构成的水质在线自动监测体系。及时掌握主要雨污径流井的水质状况，预警预报水质污染事故，监督总量控制制度落实情况和排放达标情况，协助城市水质监督、智慧城市水质指标控制。
The intelligent manhole monitoring system is an online automatic water quality monitoring system composed of multispectral technology, optical sensor technology, ion selective sensor technology, modern sensor technology, automatic control technology, specialized data analysis software, and wireless communication network. It is able to timely grasp the water quality status of the main rainwater and sewage runoff wells, provide early warning and forecasting of water pollution accidents, supervise the implementation of the total amount control system and emission standards, and assist in urban water quality supervision and smart city water quality indicator control.
系统组成
1）监测分析单元：水质多参数传感器2）供电系统：锂电池供电
3）数据采集系统 ：MQPC-06集成终端
4）数据传输系统：DTU/RTU/数采仪
5）数据服务系统：服务器、中心站管理软件等
2、System composition系统组成
1) Monitoring and analysis unit: water quality multi-parameter sensor
2) Power supply system: lithium battery power supply
3) Data collection system: MQPC-06 integrated terminal
4) Data transmission system: DTU/RTU/data acquisition instrument
5) Data service system: servers, central station management software, etc
监测系统技术参数
项 目 | 智慧窨井监测系统-微型站 |
供 电 | 12V |
锂 电 池 | 50Ah (可拓展) |
通讯协议 | 标准Modbus-RTU主从协议， 支持HJ212-2017协议 |
上传周期 | 默认30分钟， 1~1440分钟可设定 |
辅助功能 | 电压侦测、 传感器状态、 内部温湿度监控 |
超长待机 | 连续工作， 超过90天以上 (限上传周期大于15分钟以上) |
固定方式 | 支架固定 |
尺 寸 | Φ14*30CM (控制单元) ； Φ14*30CM (供电单元) |
材 质 | UPVC |
参数选择 | pH、 电导率、 溶解氧、 浊度、 温度、 COD、氨氮、液位、流量等 |
Project | Smart Inspection Well Monitoring System - Microstation |
Power supply | 12V |
Lithium battery | 50Ah (expandable) |
Communication protocol | standard Modbus-RTU master-slave protocol, supporting HJ212-2017 protocol标准Modbus-RTU |
The default upload cycle | 30 minutes, and can be set from 1 to 1440 minutes |
Auxiliary functio | voltage detection, sensor status, internal temperature and humidity monitoring |
Long standby | continuous operation for more than 90 days (limited to upload cycles greater than 15 minutes) |
Fixing method | bracket fixation |
Dimensions | Φ 14 * 30CM (control unit控制单元); Φ 14 * 30CM (power supply unit供电单元) |
Material | UPVC |
Parameter selection | pH, conductivity, dissolved oxygen, turbidity, temperature, COD, ammonia nitrogen, liquid level, flow rate, etcpH、 |
传感器技术参数
项 目 | 指 标 要 求 | ||||||
pH | 电导率 | 溶解氧 | 浊 度 | 温 度 | 氨氮 | COD | |
测量原理 | 玻璃电极法 | 四极式电极法 | 荧光法 | 90°散射 | 热电阻法 | 离子电极法 | 紫外吸收法 |
量程范围 | 0 ~ 14 pH | 1 ~100000μS/cm | 0 ~20mg/L | 0.3 ~100/1000/4000NTU | 0 ~45℃ | 0 ~ 100mg/L | 1-1500mg/L |
Project | indicator requirements | ||||||
pH | conductivity | dissolved oxygen | Turbidity | temperature | ammonia nitrogen | COD | |
Measurement principle | Glass electrode metho | quadrupole electrode method | fluorescence method | 90 ° scattering | thermal resistance method | ion electrode method | ultraviolet absorption method |
Range | 0 ~ 14 pH | 1 ~100000μS/cm | 0 ~20mg/L | 0.3 ~100/1000/4000NTU | 0 ~45℃ | 0 ~ 100mg/L | 1-1500mg/L |
流量、液位监测系统技术参数
流量、液位监测系统 | |||
系统组成 | 1、 流量、液位探头 2、 太阳能电池板和蓄电池 3、 镀锌钢管 4、 设备机箱 5、 安装支架 6、 其他必要设备（电源，地笼，基础等） 7、 污水监测云平台或本地平台 | ||
流量、液位探头类别 | 多普勒超声波流量计 | 雷达流量计 | 雷达水位计 |

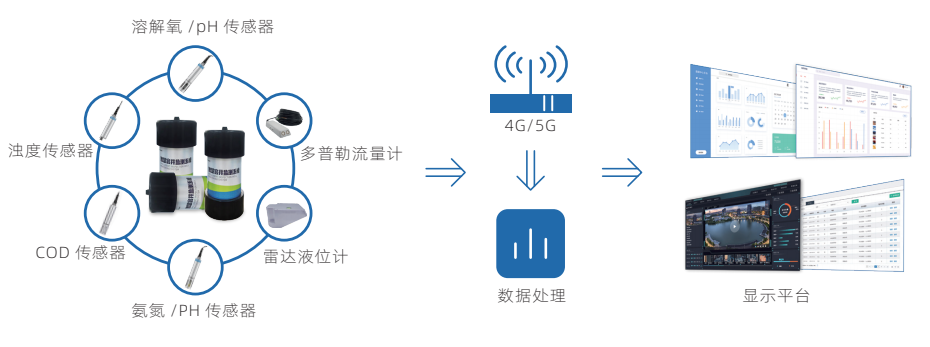

解决方案
优势特点
快速、低成本的掌握排水管道、明渠、检查井、排口的连续运行特征，需对其水质受污染情况及水文变化等多种基本运行参数进行连续测量，获取持续监测数据，掌握变化规律，通过这些基础数据的瞬时分析、统计计算、模型模拟，可以全面地进行系统现状诊断与评估，为各项研究、规划、设计等工作的开展奠定坚实的数据基础。
To rapidly and low-cost grasp the continuous operating characteristics of drainage pipelines, open channels, inspection wells, and outlets, it is necessary to continuously measure various basic operating parameters such as water quality pollution and hydrological changes, obtain continuous monitoring data, and grasp the changing patterns. Through instantaneous analysis, statistical calculation, and model simulation of these basic data, comprehensive diagnosis and evaluation of the system's current situation can be carried out, providing guidance for various research, planning The implementation of design and other work lays a solid data foundation.

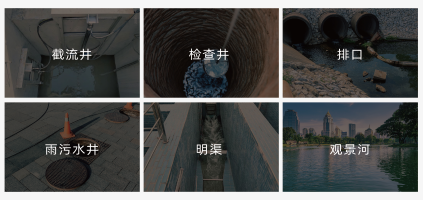

应用场景
产品资料：
泽铭科技-智慧窨井监测系统.pdf
